Chapter 7.4 - Raster Data Analysis¶

In earlier chapters, you learned about how primitive data types can be stored in collections like a list. You then learned about how you can access specific items in those collections using indexing. Next, we learned about numpy and the analyses that package can unlock in the Geosciences. However, numpy alone can be limiting for large, unwieldy datasets that are common in the Geosciences. For that use case, we can turn to a package called xarray.

Chapter 7.4.1 - Raster Data¶

As we discussed earlier in this chapter, raster data are a type of geographic data that describe and/or summarize regions of space. This is done by defining a regularly-spaced grid of points and associating each point with a value. The space between the points is then implicitly described by the value associated with that point.

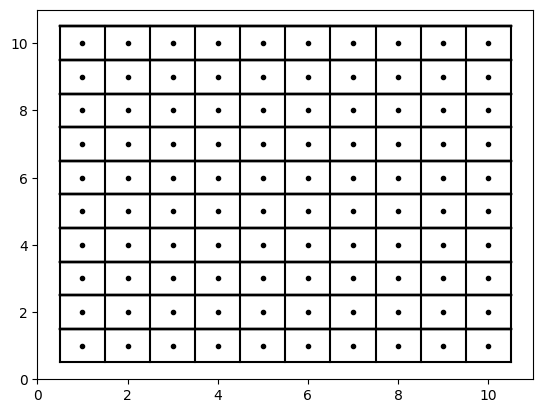

For example, consider a very simple representation of raster points below. Notice how they are equally spaced. If we drew lines that intersected positions exactly halfway between the raster points, the resulting boxes can be called grid cells or pixels. Increasing “resolution” is simply making these points closer together.

import numpy as np
import matplotlib.pyplot as plt

for xp in np.arange(1, 11, 1):
  for yp in np.arange(1, 11, 1):
      plt.plot(xp, yp, 'k.')
      plt.plot([0.5, 10.5], [yp+.5, yp+.5], 'k-')

  plt.plot([xp+.5, xp+.5], [0.5, 10.5], 'k-')

plt.plot([0.5, 0.5], [0.5, 10.5], 'k-')
plt.plot([0.5, 10.5], [0.5, 0.5], 'k-')

Your Turn: Increase the resolution from 1 unit to 0.5 units over the same domain (x range 1 - 10; y range 1 - 10)

import numpy as np
import matplotlib.pyplot as plt

for xp in np.arange(1, 11, 1):
  for yp in np.arange(1, 11, 1):
      plt.plot(xp, yp, 'k.')
      plt.plot([0.5, 10.5], [yp+.5, yp+.5], 'k-')

  plt.plot([xp+.5, xp+.5], [0.5, 10.5], 'k-')

plt.plot([0.5, 0.5], [0.5, 10.5], 'k-')
plt.plot([0.5, 10.5], [0.5, 0.5], 'k-')

The 2-dimensional numpy array that we learned about in earlier chapters was your first interaction with a “raster” data type.

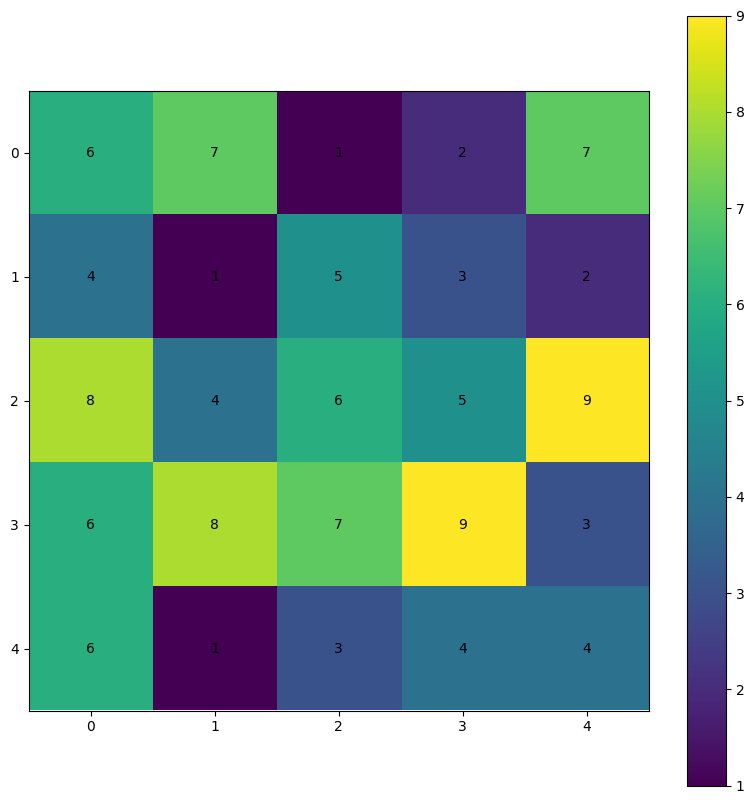

For example, we can create a random 2D numpy array and plot the values using matplotlib. The positions of each pixel correspond to the value at that index. For example, r[0, 0] (first row, first column) is equal to 6 (assuming np.random.seed(26), which is given a color that matches 6 on the colorbar.

Your turn: If the pixel color is too dark to read the text, use color='white'.

NOTE: if you change np.random.seed(26) you will get different numbers.

plt.rcParams['figure.figsize'] = 10, 10

np.random.seed(26)

r = np.random.randint(1, 10, size=(5, 5))

ax = plt.subplot(1, 1, 1)

cm = plt.imshow(r)
plt.colorbar(cm, ax=ax)

print("The value at r[0,0] is ->", r[0,0])
print("The array values are ->\n", r)

for i in range(r.shape[0]):
    for j in range(r.shape[1]):
        ax.text(j, i, f"{r[i, j]}", ha="center",
                va="center", color="black")

The value at r[0,0] is -> 6
The array values are ->
 [[6 7 1 2 7]
 [4 1 5 3 2]
 [8 4 6 5 9]
 [6 8 7 9 3]
 [6 1 3 4 4]]

Using numpy for small datasets with one “variable” like above. However, consider a situation where you have to deal with multiple variables or multiple times of the same (or multiple) variables and incorporate a third, forth, or fifth dimension to separate the variables:

np.random.seed(26)

r = np.random.randint(1, 10, size=(3, 5, 5))

for var in range(r.shape[0]):
    ax = plt.subplot(1, 3, var+1)
    ax.set_title(f"Variable {var}")

    cm = plt.imshow(r[var])
    plt.colorbar(cm, ax=ax, shrink=0.3)

    print("The value at r[var][0,0] is ->", r[var][0,0])
    print("The array values are ->\n", r[var])

    for i in range(r[var].shape[0]):
        for j in range(r[var].shape[1]):
            ax.text(j, i, f"{r[var][i, j]}", ha="center",
                    va="center", color="black")

The value at r[var][0,0] is -> 6
The array values are ->
 [[6 7 1 2 7]
 [4 1 5 3 2]
 [8 4 6 5 9]
 [6 8 7 9 3]
 [6 1 3 4 4]]
The value at r[var][0,0] is -> 4
The array values are ->
 [[4 4 2 2 5]
 [1 7 9 1 1]
 [8 7 5 8 1]
 [9 7 4 7 7]
 [1 9 6 9 7]]
The value at r[var][0,0] is -> 2
The array values are ->
 [[2 4 7 1 7]
 [8 1 4 7 7]
 [7 8 2 3 1]
 [7 9 8 4 1]
 [1 7 5 1 4]]

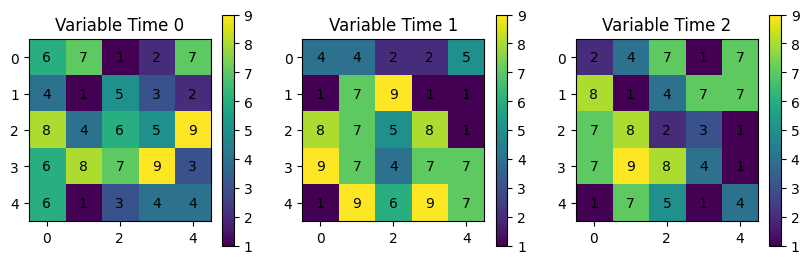

You might consider a dictionary to deal with each variable or time:

np.random.seed(26)

r = np.random.randint(1, 10, size=(3, 5, 5))

dataset = {'Time 0': r[0],
           'Time 1': r[1],
           'Time 2': r[2]}

for ix, (var_name, var_data) in enumerate(dataset.items()):
    ax = plt.subplot(1, 3, ix+1)
    ax.set_title(f"Variable {var_name}")

    cm = plt.imshow(var_data)
    plt.colorbar(cm, ax=ax, shrink=0.3)

    print("The value at var_data[0,0] is ->", var_data[0,0])
    print("The array values are ->\n", var_data)

    for i in range(var_data.shape[0]):
        for j in range(var_data.shape[1]):
            ax.text(j, i, f"{var_data[i, j]}", ha="center",
                    va="center", color="black")

The value at var_data[0,0] is -> 6
The array values are ->
 [[6 7 1 2 7]
 [4 1 5 3 2]
 [8 4 6 5 9]
 [6 8 7 9 3]
 [6 1 3 4 4]]
The value at var_data[0,0] is -> 4
The array values are ->
 [[4 4 2 2 5]
 [1 7 9 1 1]
 [8 7 5 8 1]
 [9 7 4 7 7]
 [1 9 6 9 7]]
The value at var_data[0,0] is -> 2
The array values are ->
 [[2 4 7 1 7]
 [8 1 4 7 7]
 [7 8 2 3 1]
 [7 9 8 4 1]
 [1 7 5 1 4]]

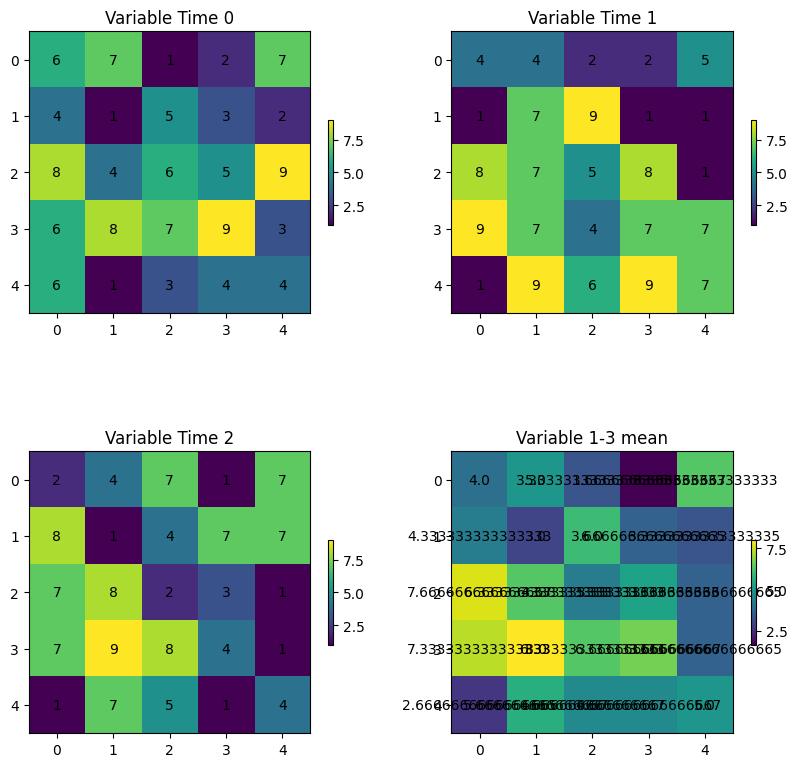

What if you wanted to find the mean of those three variables?

Your Turn: format the mean result so the numbers have 1 decimal place.

np.random.seed(26)

r = np.random.randint(1, 10, size=(3, 5, 5))

dataset = {'Time 0': r[0],
           'Time 1': r[1],
           'Time 2': r[2]}

times = []

for ix, (var_name, var_data) in enumerate(dataset.items()):
    ax = plt.subplot(2, 2, ix+1)
    ax.set_title(f"Variable {var_name}")

    cm = plt.imshow(var_data)
    plt.colorbar(cm, ax=ax, shrink=0.3)

    print(f"The value at var_data[0,0] {ix} is ->", var_data[0,0])
    print(f"The array {ix} values are ->\n", var_data)

    for i in range(var_data.shape[0]):
        for j in range(var_data.shape[1]):
            ax.text(j, i, f"{var_data[i, j]}", ha="center",
                    va="center", color="black")

    times.append(var_data)

mean_stack = np.stack(times)
mean_stack = np.mean(mean_stack, axis=0) # 'time' dimension mean

ax = plt.subplot(2, 2, 4)
ax.set_title(f"Variable 1-3 mean")

cm = plt.imshow(mean_stack)
plt.colorbar(cm, ax=ax, shrink=0.3)

print("The value at mean_stack[0,0] is ->", mean_stack[0,0])
print("The array mean_stack are ->\n", mean_stack)

for i in range(mean_stack.shape[0]):
    for j in range(mean_stack.shape[1]):
        ax.text(j, i, f"{mean_stack[i, j]}", ha="center",
                va="center", color="black")

The value at var_data[0,0] 0 is -> 6
The array 0 values are ->
 [[6 7 1 2 7]
 [4 1 5 3 2]
 [8 4 6 5 9]
 [6 8 7 9 3]
 [6 1 3 4 4]]
The value at var_data[0,0] 1 is -> 4
The array 1 values are ->
 [[4 4 2 2 5]
 [1 7 9 1 1]
 [8 7 5 8 1]
 [9 7 4 7 7]
 [1 9 6 9 7]]
The value at var_data[0,0] 2 is -> 2
The array 2 values are ->
 [[2 4 7 1 7]
 [8 1 4 7 7]
 [7 8 2 3 1]
 [7 9 8 4 1]
 [1 7 5 1 4]]
The value at mean_stack[0,0] is -> 4.0
The array mean_stack are ->
 [[4.         5.         3.33333333 1.66666667 6.33333333]
 [4.33333333 3.         6.         3.66666667 3.33333333]
 [7.66666667 6.33333333 4.33333333 5.33333333 3.66666667]
 [7.33333333 8.         6.33333333 6.66666667 3.66666667]
 [2.66666667 5.66666667 4.66666667 4.66666667 5.        ]]

As you can see, it is very difficult to keep track of all of the data and perform meaningful analyses on these data. In addition, this does not even take into account reading in existing data.

Chapter 7.4.2 - Xarray¶

Xarray is a Python package that can handle this issue and many more. It builds on the numpy model of fast, element-wise calculations and the “human readable” positives of pandas and dictionary to create an all-in-one data inspection, visualization, analysis, and serialization tool.

The Xarray data model is based on a few new data structures and terms we need to become familiar with:

Dataset: The main data structure used in xarray. In pandas/geopandas terms, this is the equivalent of a DataFrame or GeoDataFrame. This contains all of the attribute data, geospatial data, and metadata. Consider the following code that reads in data:

# ds (Dataset) is equivalent to df (DataFrame) in pandas
ds = xarray.open_dataset("filename.nc")
df = pd.read_csv("filename.csv")

DataArray: The single-variable data structure. In pandas/geopandas it is equivalent to a Series/GeoSeries. These data have the following properties:

.values: converts the DataArray variable to a numpy-like representation
.dims: gives the relevant dimension names for that variable
.coords: accesses the coordinates relevant for that variable
.attrs: accesses the metadata relevant for that variable

Dimensions: Dimensions are similar to indexes in numpy arrays, particularly n-dimensional numpy arrays.
Coordinates: These define human-readable (usually) labels for dimension indexes. Coordinates include specific times, latitudes, longitudes, etc.
Data variables: The actual Geoscience data at geographic positions defined by the coordinates. In this case, the dimensions of our Geoscience data are (time, lat, and lon). This is telling us that we could access precipitation data by indexing lat, lon, and/or time.
Attributes: These are the “metadata” associated with the raw values and coordinates that give us more information about the data. This is a very convenient feature of netCDF data and is usually “packaged” with the data seamlessly.

Data selection

There are two different ways to index data in the xarray dataset.

.sel(coordinate_name= ...): This requires selecting by the coordinate label. More similar to how data are accessed in pandas. If using float data, you need to include the argument method=‘nearest’ because of floating point rounding and precision issues.
.isel(coordinate_name= ...): This requires selecting by the integer index. More similar to how data are accessed in numpy.

We can see all of these when reading in a sample file from the xr.tutorial subpackage

import xarray as xr

ds = xr.tutorial.open_dataset("air_temperature_gradient")

print("Dataset ->")
display(ds)

print("Dataset sel(time='2013-01-01 00:00:00') ->")
display(ds.sel(time='2013-01-01 00:00:00'))

print("Dataset isel(time=0) ->")
display(ds.isel(time=0))

print("\n\nDataArray ->")
display(ds['Tair'])

print("\n\nDataArray values (only the first five in each dim) ->")
display(ds['Tair'].values[:5, :5, :5])

print("\n\nDataArray dims  ->")
display(ds['Tair'].dims)

print("\n\nDataArray coords  ->")
display(ds['Tair'].coords)

print("\n\nDataArray attrs  ->")
display(ds['Tair'].attrs)

Dataset ->

Dataset sel(time='2013-01-01 00:00:00') ->

Dataset isel(time=0) ->



DataArray ->



DataArray values (only the first five in each dim) ->

array([[[241.2 , 242.5 , 243.5 , 244.  , 244.1 ],
        [243.8 , 244.5 , 244.7 , 244.2 , 243.39],
        [250.  , 249.8 , 248.89, 247.5 , 246.  ],
        [266.5 , 267.1 , 267.1 , 266.7 , 265.9 ],
        [274.5 , 274.29, 274.1 , 274.  , 273.79]],

       [[242.1 , 242.7 , 243.1 , 243.39, 243.6 ],
        [243.6 , 244.1 , 244.2 , 244.1 , 243.7 ],
        [253.2 , 252.89, 252.1 , 250.8 , 249.3 ],
        [269.7 , 269.4 , 268.6 , 267.4 , 266.  ],
        [272.5 , 271.5 , 270.4 , 269.4 , 268.5 ]],

       [[242.3 , 242.2 , 242.3 , 242.5 , 242.89],
        [244.6 , 244.39, 244.  , 243.39, 242.8 ],
        [256.2 , 255.5 , 254.2 , 252.3 , 250.2 ],
        [269.29, 268.5 , 267.  , 265.  , 262.7 ],
        [271.9 , 271.79, 271.6 , 270.7 , 269.4 ]],

       [[241.89, 241.8 , 241.8 , 242.1 , 242.6 ],
        [246.3 , 245.3 , 244.2 , 243.3 , 242.6 ],
        [256.6 , 254.7 , 252.1 , 249.39, 247.  ],
        [267.7 , 266.29, 264.4 , 262.2 , 259.79],
        [272.79, 272.4 , 271.9 , 271.4 , 270.7 ]],

       [[243.2 , 243.1 , 243.1 , 243.3 , 243.6 ],
        [246.39, 245.3 , 244.2 , 243.2 , 242.6 ],
        [254.8 , 253.1 , 250.89, 248.7 , 246.8 ],
        [265.7 , 265.1 , 264.2 , 263.1 , 261.79],
        [273.7 , 273.6 , 273.4 , 273.29, 273.1 ]]])



DataArray dims  ->

('time', 'lat', 'lon')



DataArray coords  ->

Coordinates:
  * time     (time) datetime64[ns] 23kB 2013-01-01 ... 2014-12-31T18:00:00
  * lat      (lat) float32 100B 75.0 72.5 70.0 67.5 65.0 ... 22.5 20.0 17.5 15.0
  * lon      (lon) float32 212B 200.0 202.5 205.0 207.5 ... 325.0 327.5 330.0



DataArray attrs  ->

{'long_name': '4xDaily Air temperature at sigma level 995',
 'units': 'degK',
 'precision': np.int16(2),
 'GRIB_id': np.int16(11),
 'GRIB_name': 'TMP',
 'var_desc': 'Air temperature',
 'dataset': 'NMC Reanalysis',
 'level_desc': 'Surface',
 'statistic': 'Individual Obs',
 'parent_stat': 'Other',
 'actual_range': array([185.16, 322.1 ], dtype=float32)}

We can quickly examine the raw data from a DataArray on a map using xarray’s built-in plotting methods:

import cartopy.feature as cfeature
import cartopy.crs as ccrs

ax = plt.subplot(1, 1, 1, projection=ccrs.LambertConformal())
ax.add_feature(cfeature.STATES)
ax.add_feature(cfeature.BORDERS)
ax.add_feature(cfeature.COASTLINE)

ax.set_extent([-123, -70, 20, 50])

air = ds['Tair'].isel(time=1)

air.plot(transform=ccrs.PlateCarree(),
         cbar_kwargs={'shrink': 0.4},
         ax=ax)

<cartopy.mpl.geocollection.GeoQuadMesh at 0x7c0be6c83860>

/usr/local/lib/python3.12/dist-packages/cartopy/io/__init__.py:242: DownloadWarning: Downloading: https://naturalearth.s3.amazonaws.com/50m_cultural/ne_50m_admin_1_states_provinces_lakes.zip
  warnings.warn(f'Downloading: {url}', DownloadWarning)
/usr/local/lib/python3.12/dist-packages/cartopy/io/__init__.py:242: DownloadWarning: Downloading: https://naturalearth.s3.amazonaws.com/50m_cultural/ne_50m_admin_0_boundary_lines_land.zip
  warnings.warn(f'Downloading: {url}', DownloadWarning)
/usr/local/lib/python3.12/dist-packages/cartopy/io/__init__.py:242: DownloadWarning: Downloading: https://naturalearth.s3.amazonaws.com/50m_physical/ne_50m_coastline.zip
  warnings.warn(f'Downloading: {url}', DownloadWarning)

Chapter 7.4.3 - Xarray math¶

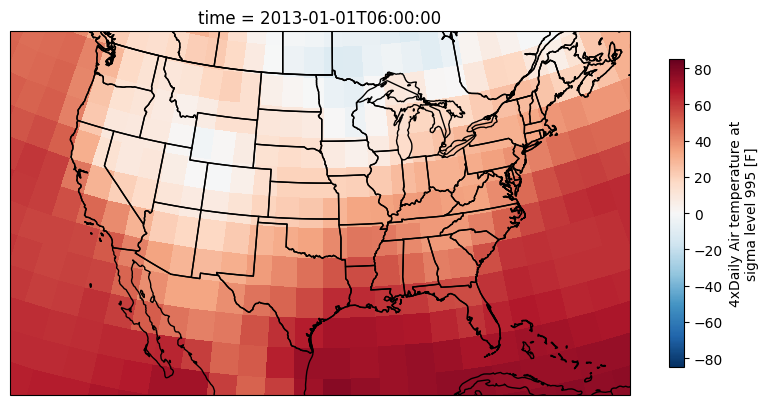

Applying numeric modifiers to DataArrays is as easy as it was with numpy. Unless otherwise specified, the operation will be elementwise (i.e., every pixel will be visited and modified automatically). We can very quickly convert the air temperature in K to F

ax = plt.subplot(1, 1, 1, projection=ccrs.LambertConformal())
ax.add_feature(cfeature.STATES)
ax.add_feature(cfeature.BORDERS)
ax.add_feature(cfeature.COASTLINE)

ax.set_extent([-123, -70, 20, 50])

air = ds['Tair'].isel(time=1)

# very numpy-like!
air = (air - 273.15) * (9/5) + 32

#remember to update the metadata!
air.attrs['units'] = "F"

air.plot(transform=ccrs.PlateCarree(),
         cbar_kwargs={'shrink': 0.4},
         ax=ax)

<cartopy.mpl.geocollection.GeoQuadMesh at 0x7c0bdce81a30>

Chapter 7.4.4 - Masking¶

In some cases, you may want to discount or disqualify certain pixels in time and space when they are below a certain threshold. We can do this using the .where method.

The where method of a DataArray can be used to assign np.nan (no value, null, etc.) to pixels that fail a given test (similar to pandas!).

The basic pattern for this method is to pass in a test that includes the DataArray. In this example da is a DataArray, and da > threshold is an example test (the test could be anything).

result = da.where(da > threshold)

Below, I provide a slightly different approach compared to the last example.

First, I set air equal to a DataArray

air = ds['Tair']

Next I run the masking method to mask all pixels below zero

Think about: Where and when is the masking being applied?

air_ab_frz = air.where(air > 273.15)

And now convert the data to F and change the metadata on the masked DataArray:

air_ab_frz = (air_ab_frz - 273.15) * (9/5) + 32
air_ab_frz.attrs['units'] = "F"

Your Turn: change the number in air_eg = air.isel(time=5) to 6 or other integers. How can you tell that the where was applied to all time steps?

ax = plt.subplot(1, 1, 1, projection=ccrs.LambertConformal())
ax.add_feature(cfeature.STATES)
ax.add_feature(cfeature.BORDERS)
ax.add_feature(cfeature.COASTLINE)

ax.set_extent([-123, -70, 20, 50])

air_eg = air.isel(time=5)

air_eg.plot(transform=ccrs.PlateCarree(),
         cbar_kwargs={'shrink': 0.4},
         ax=ax)

<cartopy.mpl.geocollection.GeoQuadMesh at 0x7c0bdcd9fb90>

Your Turn: Get into small groups and write code that allows you to examine temperature change between two subsequent time steps.

Built-in math functions¶

xarray’s most useful methods include simple mathematical operations that we have used before with numpy: mean, sum, max, min, std, percentile/quantile. We can take advantage of the coordinates to transform our Geoscience expectations and best practices into simple method calls.

We will practice these method calls in Lab 4.
